AC-5V2A power adapter 5V-2A

Power adapter 220V / 5V - 2A. Suitable for e.g. AXAGON USB repeaters.

Product code: AC-5V2A

Category: EOL products

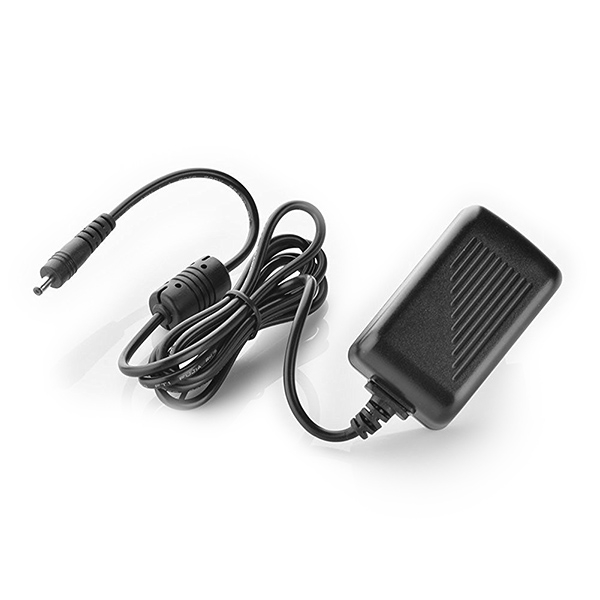

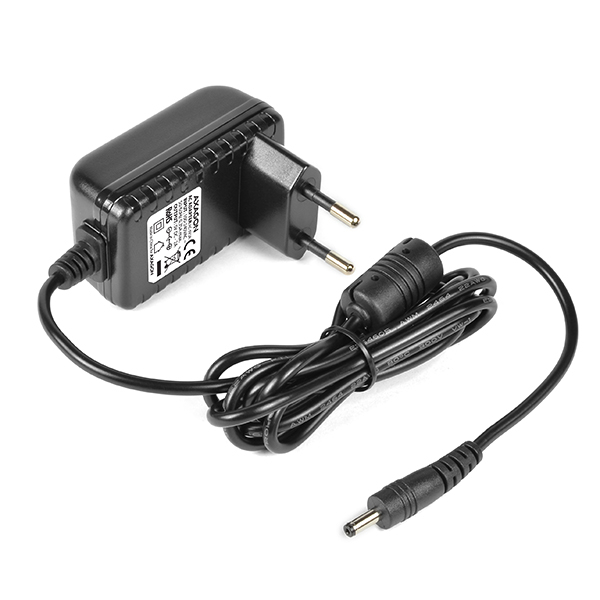

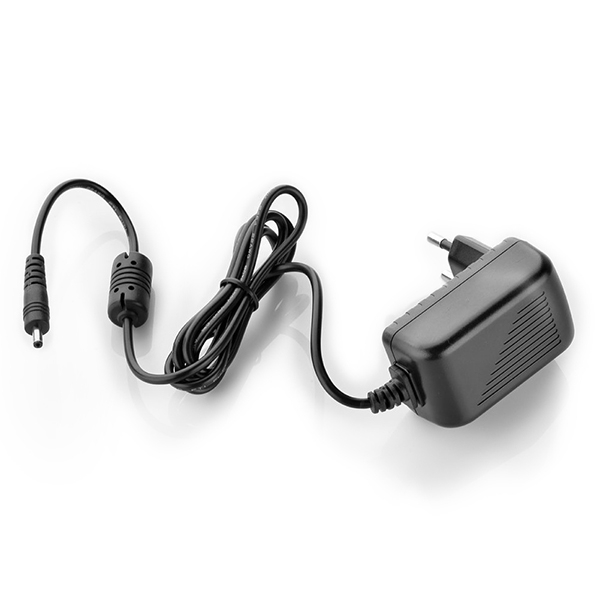

AC power supply adapter AXAGON AC-5V2A AC switched stabilized 220V - 50Hz / 5V - 2A.

Output coaxial connector with external diameter of 3.5 mm and internal diameter of 1.3 mm.

Recommended for auxiliary power supply for active USB extensions - AXAGON ADR-xxx repeater cables.

The feeder can be used universally for USB hubs with auxiliary power supply, or for powering other electronic devices that have a standard 3.5 mm power connector.

Input:
• Input voltage 100 - 240V AC, 50/60 Hz, 0.4 A.
• Two-pin euro fork integrated in the body of the feeder.

Output:
• Output power 5V - 2000mA (10W).

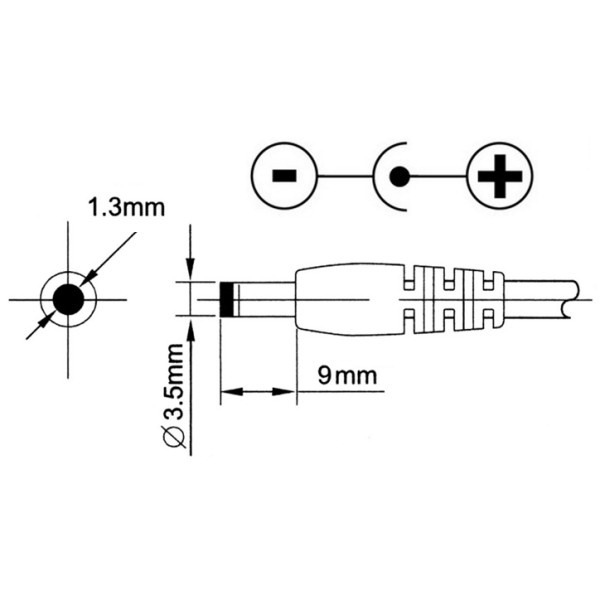

• 3.5 mm jack (coaxial power connector 3.5 / 1.3 mm external / internal diameter, connector length 9 mm).

Other features:
• overload protection,
• short circuit protection,
• dimensions of the feeder body 40 x 65 x 65 mm including fork (W x H x D),
• supply cable 1.5 m long,
• weight including cable 110 g.

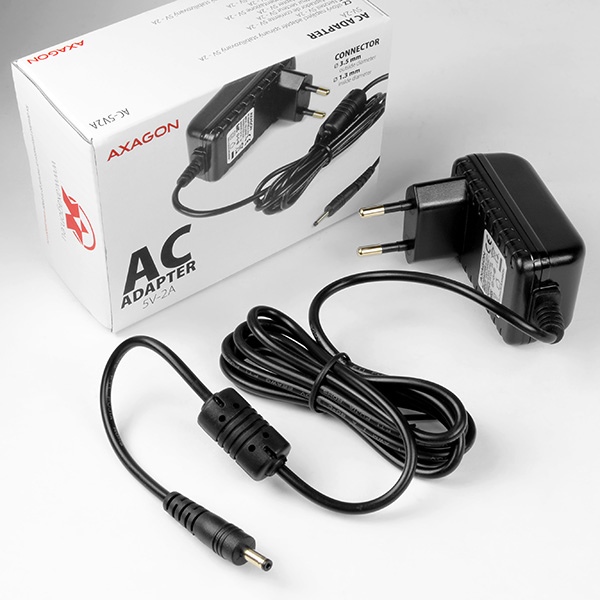

Package contains:
• AC adapter with cable 1.5 m long,
• printed safety instructions,
• packed in a cardboard box.

Package contents

- AC adapter with cable 1.5 m long
- printed safety instructions

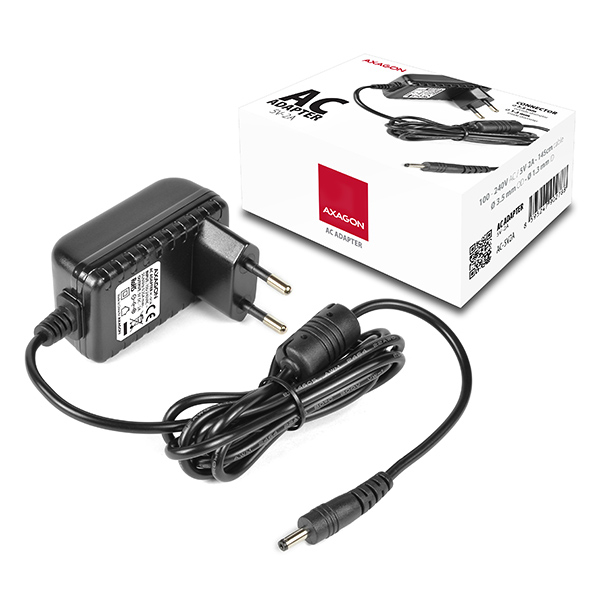

Product package

- cardboard box
- package dimensions 11.5 x 8.5 x 5 cm
- weight of 1 pc package 145 g
- EAN 8595247902788

Export package

- number of pieces in the box: 70
- total weight of the box: 11.15 kg G.W.
- box dimensions: 46 x 31 x 31 cm

When is it necessary to use the auxiliary power via the AC-5V2A power adapter?

A): If a device without own power supply and higher current consumption is connected to an active power cord , the device may not work or works unreliably. If you want to use a self-powered device such as a printer at the end of the cable, no auxiliary power is needed.

B): The auxiliary power supply should be used at a higher demand than 100 mA, or when several cables are connected in series (behind each other). For details, refer to the User Manual (downloadable on the product page).
