HUE-F7A SuperSpeed USB-A FLAT hub

Name: HUE-F7A SuperSpeed USB-A FLAT hub
Brand: AXAGON
SKU: HUE-F7A

Seven-port USB 3.2 Gen 1 hub with charging support. Connector for external power supply. USB-A cable 1 m.

Product code: HUE-F7A

Category: Hubs , Multi-port USB hubs , All products

The slim USB 3.2 Gen 1 (USB 3.0) hub AXAGON HUE-F7A with a 1 m long USB cable easily and quickly connects up to seven USB devices to the computer at the same time. The USB 3.2 Gen 1 standard enables transfer speeds of up to 5Gb/s.

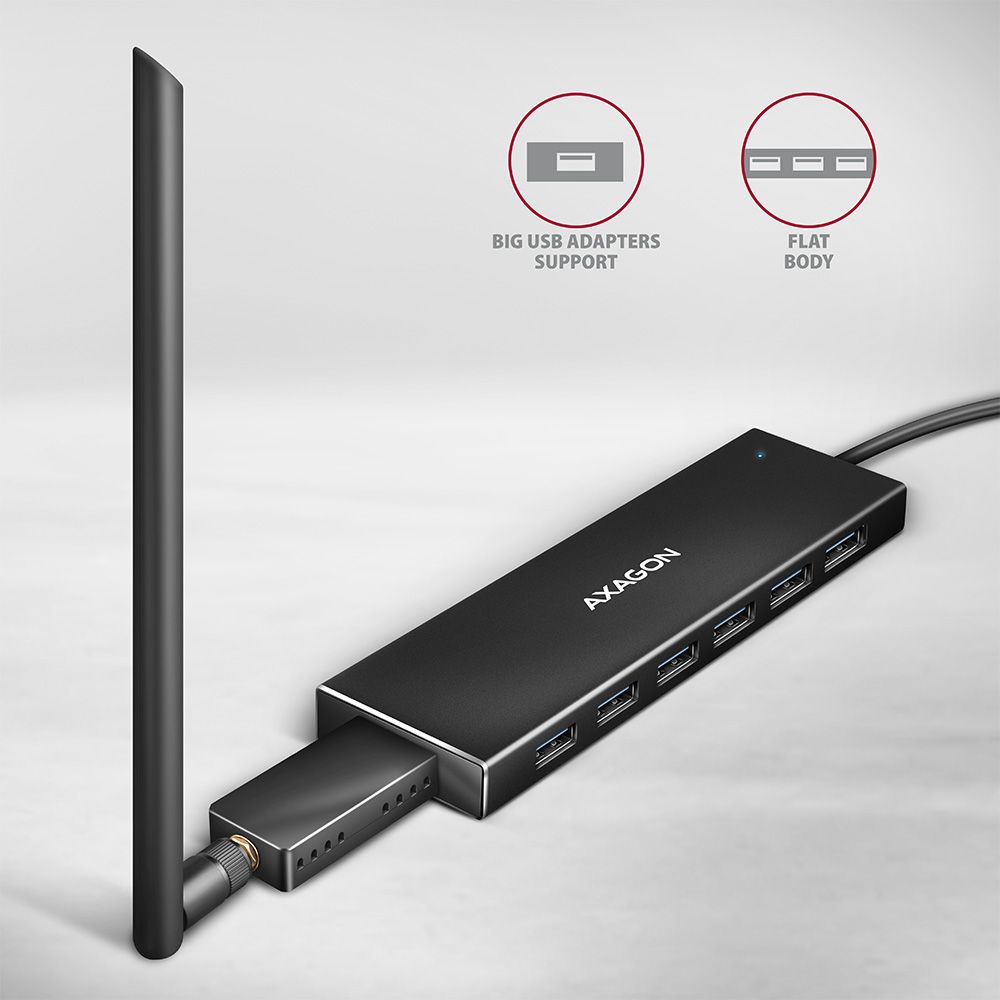

The metal hub body is made of aluminum and provides perfect mechanical protection. Elegant finely structured body surface against fingerprint. Permanently fixed 100 cm long USB-A cable is suitable for use with a desktop computer. The advantage is a separate USB-A port on the front, which is used to connect larger flash disks, readers and other USB devices.

The versatility of this USB hub is also enhanced by the built-in micro USB connector for additional power from standard USB chargers supplied with mobile phones. Thanks to this additional power supply several external disks or increase the number of mobile phones you can charge. It can handle the permanent connection of several external drives even without an external power supply to the hub. After connecting the external power supply, it is possible to work with five external disks at the same time.

Thanks to the Charging hub function, mobile devices can be charged even without connecting to a computer. An unused charger turns this USB hub into a charging hub for free. The hub will also enable charging of phones and tablets with a current of up to 1.5A/5V, so you can easily charge e.g. Android smartphone, Apple iPhone, Apple iPad etc.

Input:
• 1x USB 3.2 Gen 1 / SuperSpeed USB port, USB-A male connector.
• Backward compatible with USB 3.1 Gen 1 / USB 3.0 / USB 2.0 and USB 1.1.
• Connecting USB type A male connector on a fixed 100 cm long cable.

Outputs:
• 7x SuperSpeed USB port, USB-A female connectors.
• Support transfer rates 5.000 / 480 / 12 / 1.5 Mb/s (SuperSpeed / High / Full / Low speed).
• The total bandwidth / transfer rate of the box is given by the USB 3.2 Gen 1 interface (theoretically up to 5 Gbit/s).

Features:
• Possibility to connect your device while running thanks to the Hot Plug support.
• Full Plug and Play support.
• Standby mode support.
• High quality shielded cable ensures fast communication speed and minimal unwanted interference.
• Blue LED indicates the connection to the computer's USB port.
• Dimensions 145 x 42 x 15 mm.
• Weight 110 g (incl. cable).
• USB cable length 100 cm.

The hub power mode via USB cable (bus power):
• USB power is sufficient to connect low-power USB devices (mouse, keyboard, card reader, flash drive, etc.) or self-powered (printer, scanner, 3.5" external drive) to all four ports.
• In this power mode, the USB hub is also able to work with up to 3 magnetic 2.5" external disks simultaneously.
• Charge mobile devices (including iPad) with current up to 1.5A in each of the hub ports. The total charging current (which is divided into ports) reaches up to 3A at 5V (depending on the capabilities of the computer's USB port).

The hub power mode via USB + external USB charger (self power):

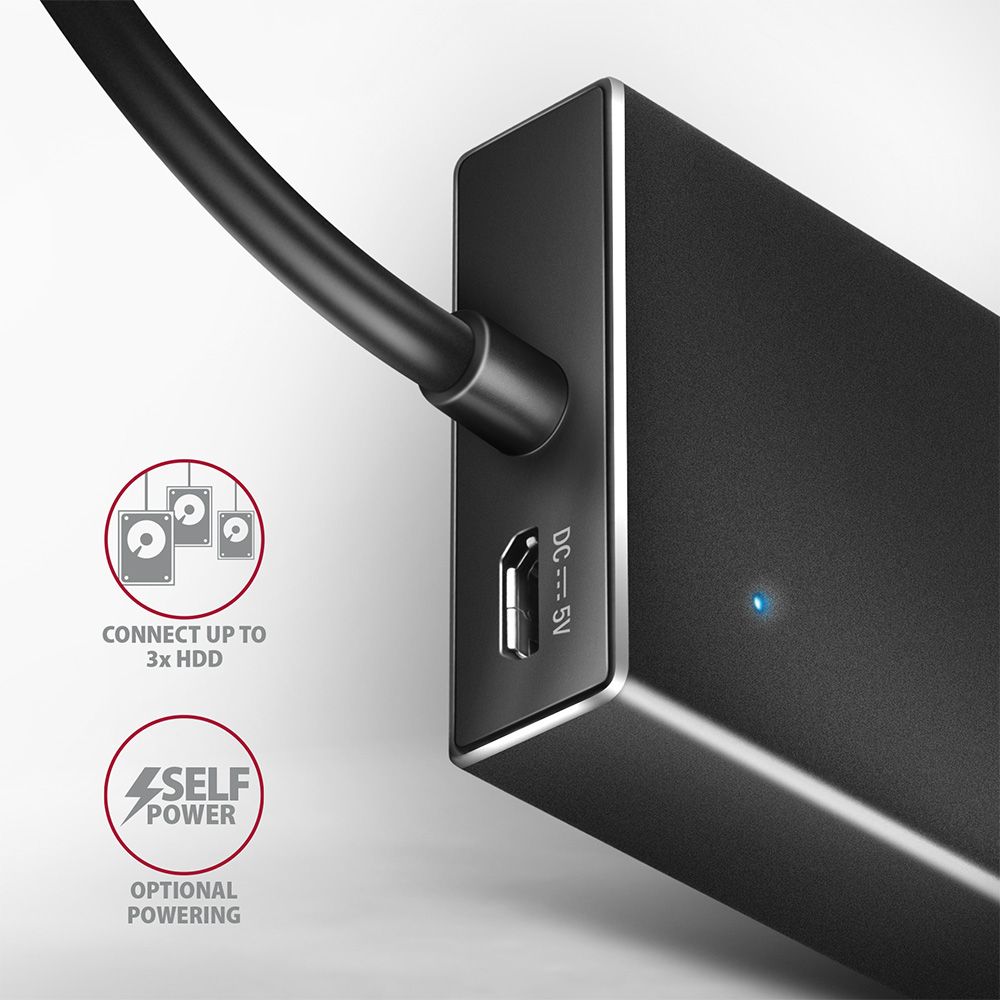

• Integrated micro USB connector for additional powering the hub.
• Any mobile device wall charger (not included) with micro USB connector can be used (recommended output current of the charger min. 2A).
• In this power mode, the USB hub is able to work with up to 5 magnetic 2.5" external disks. However, for reliable long-term operation of the hub, we recommend connecting a maximum of 3 magnetic external 2.5" drives at the same time.
• Charge mobile devices (including iPad) with current up to 1.5A in each of the hub ports. The total charging current (which is divided into ports) reaches up to 5A at 5V (depending on the capabilities of the external wall charger).

Independent charging hub mode without connecting to a computer (charging hub):
• After turning off the connected computer or without connecting to the computer, the hub works with power via a USB charger as a separate charging USB hub, just plug a standard charger with a micro USB connector into the hub (micro USB input).
• Charging mobile devices (including iPad) with current up to 1.5A in each of the hub ports, the total charging current (which is divided into ports) reaches up to 3A at 5V (depending on the capabilities of the external power adapter).

Supported OS:
• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 and later (supported are all 32 and 64-bit versions of Windows OSs), MacOS X 10.4.x and later, Linux with kernel 2.6.x and later, Android most versions.
• Note: Drivers are included with supported operating systems and are installed completely automatically. No other drivers need to be installed and are not even available.

Package contains:
• SuperSpeed USB hub with fixed 100 cm long USB cable,
• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
• packed in a cardboard box with a hanging hole.

PACKAGE CONTENTS

- USB-A hub with a permanently connected 1 m cable
- installation guide

USER MANUAL

- printed multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA

PRODUCT PACKAGE

- a cardboard box with an option to be hanged on the retail display stands
- package dimensions 245 x 100 x 28 mm
- weight of 1 pc package 163 g
- EAN 8595247907035

EXPORT PACKAGE

- number of pieces in the box: 80
- total weight of the box: 14.1 kg G.W.
- box dimensions: 24 x 42 x 59 cm

USER MANUAL

Download

HUE-F7A - installation instructions - CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA

The USB hub is not detected when connected to a computer; where can I download drivers for the USB hub?

A): The necessary drivers are already included in all operating systems and install completely automatically, and no additional drivers are needed.

B): Plug the USB hub into another USB port (on the back of the computer where the USB ports are integrated directly into the motherboard). It should re-detect the USB hub and reinstall the drivers. Alternatively, try replacing the USB cable. The obsolete driver of the USB controller could also cause problems. Manufacturers of USB 3.0 chipsets often issue new versions of drivers to improve compatibility with different devices. If the problem with the USB bub persists, plug it into the USB port of another computer to verify its functionality.

Is it possible to charge your phone / tablet with a USB hub while having a USB device connected to it?

A): The phone / tablet cannot be powered by an OTG cable, this is given by the OTG principles. The tablet can be connected to a charger by a normal cable and charged itself or devices can be connected to it with an OTG cable

B): Phones / tablets that have a power connector located outside the microUSB have an advantage - here the tablet can be powered through a round connector and connect other peripherals (mouse, keyboard, flash disk, etc.) to the microUSB using an OTG cable (via the USB hub).

Can I connect a 2.5" external box to a USB hub?

A): In the vast majority of cases, the USB hub can handle connection of one 2.5" external box. If more external boxes are connected, a higher current is needed that ordinary USB cannot deliver.

B): In this case, an auxiliary power supply is required. Use a USB hub with auxiliary power supply.

Can I use an USB extension cable to connect a USB hub to my computer?

A): You can use a passive USB cable to connect a USB hub to your computer. However, with longer cables the USB hub may not work reliably.

B): In this case, we recommend using an active extension USB repeater cable, such as AXAGON ADR-205 or ADR-210.

Where can I download drivers to my card reader?

A): Drivers are included with operating systems and are installed completely automatically. The card reader is detected as a standard storage device, such as a USB flash disk, no other drivers are available.

B): No other drivers need to be installed and are not even available. If you continue to have problems with your reader, check out more tips that can help you troubleshoot problems.

The network card is not displayed in "Device Manager".

A): If the network card is not displayed in "Device Manager", a USB port (or a PCIe slot in the event of an internal network card) may be malfunctioning.

B): Try plugging the network card into another USB port (or another PCIe slot on the PC motherboard in the event of an internal network card, or temporarily disconnect all other PCIe cards). The network card should be detected and you should be prompted to install the drivers. If the problem persists, plug the network card into the USB port (PCIe slot) of another computer to verify its functionality.

The card reader is reported in "Device Manager" as "Unknown Device".

A): If this happens, it means that the operating system failed to get the necessary information to install the drivers.

B): The cause may be a defective USB cable or damaged device. Another option is to remove the record of the connected USB device using "USBDeview". After connecting the reader, the drivers should be reloaded. If the problem is caused by a driver error, the problem should be eliminated. If the problem persists, plug the card reader into the USB port of another computer to verify its functionality.

The network card is reported in "Device Manager" as "Unknown Device" (USB).

A): If this happens, it means that the operating system failed to get the necessary information to install the drivers.

B): The cause may be a defective USB extension cable or damaged device. If the problem persists, plug the network card into the USB port of another computer to verify its functionality.

The reader is not displayed in the "My Computer" folder.

A): If this happens, it means that the Windows operating system did not assign a drive letter to the new storage device.

B): If the drive letter is not assigned, open "Disk Management", right-click on the desired drive and manually assign the drive letter. Another option is that the correct formatting of the memory card is not performed. Format the card in "Disk Management" or in the device on which you are using the card (for example, the camera).

Can I connect an ANDROID tablet to Ethernet?

A): Before connecting the USB network card to an Android device (tablet), you first need to verify with the device manufacturer whether the device supports the Ethernet network feature and also whether the USB network card drivers are included in your specific ANDROID ROM installation.

B): Use a USB connector with OTG support to connect the USB network card to your tablet. If the device (tablet) is equipped with a Mini USB or Micro USB connector, use an OTG reduction or cable to connect it.
